Turbine Engine Wash System

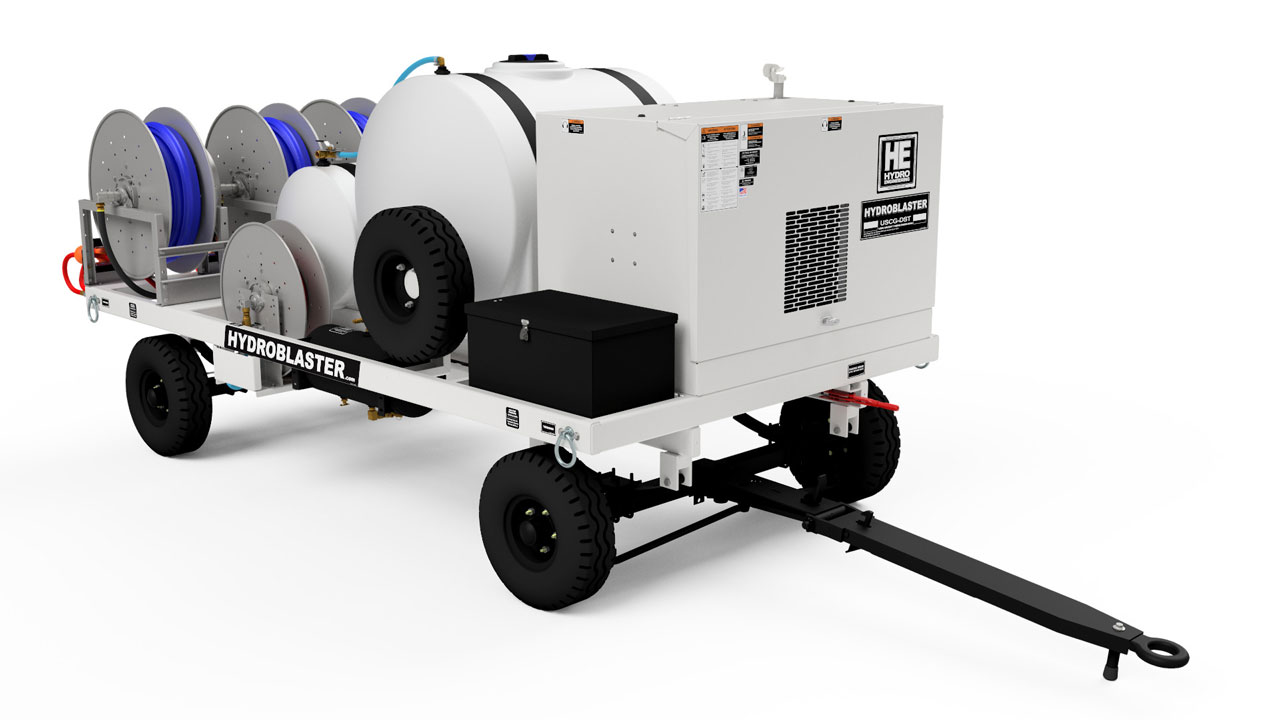

The Hydroblaster model 12/075TEWS-USCG, NSN 1730-01-592-2166, and USAF specific NSN 1730PAFMC-18028 is the direct replacement of the original successful model 12/075TEWS-DST. This system was redesigned to meet fully with wash requirements set forth for the Rolls Royce AE2100D engines, commonly aboard the C130J airframe. This system is designed to supply required air supply to close all four fuel pucks simultaneously and hold closed throughout the complete wash cycles. Typical four (4) engine C130J wash and three rinses completed in 21 minutes, abiding with Rolls Royce requirement of a high RPM burn within 30-minutes of first fluid push. System includes fluid line evacuation via bypass air to remove water from wash lines (freeze protection) and to air blow the fluid fuel lines on the engine as required.

The TEWS-USCG as standard set to facilitate up to four (4) engine interface with the standard four (4) locking, spring retract reel configuration. Mounted on a heavy-duty steerable flight line trailer and powered by a heavy-duty water-cooled diesel engine which exemplifies a quality selfcontained engine wash system. System is equipped with QDs and fittings to support the C130J posts and the C130H fuel and air lines.

Factory set to support the following aircraft engines and aircraft:

Order Parts Request Quote


Available for purchase from Hydro Engineering, Inc. NSN 1730-01-592-2166, Cage Code 64030.

Model Specifications

PDFTEWS-USCG Specification

Download the Whitepaper

Aircraft corrosion is a multi-billion dollar problem. On some aircraft types, corrosion maintenance hours are know to outstrip flight hours. Download the white paper below for a comprehensive view of Hydro's unique solutions.

PDFClick here for the paper
