Single And Dual Polishing Loop Systems for Wastewater Treatment / Recycling

Water Filtration

These Systems Adapt Well To Current Inground Collection Tanks

Bioremediation and Multi-Media filtration has been in existence since the dawn of time--this is how nature has cleaned the earth and its water for millions of years.

The use of multimedia filters in combination with bioremediation is the perfect match. The filters will not only catch the substrates to be consumed by the bacteria, but also the inorganic materials that bacteria will not consume. Multimedia filters are the perfect biomass (collection point) for bioremediation products. Sand and many types of silt are examples of items that bugs will not eat. Multimedia filters will remove these contaminants for back flushing to a removal point that is most convenient. Oils and grease must be caught in a retention area (bioreactor) or coalescing system to allow the enzymes to break them down and bacteria to consume them.

In the environment and in industrial applications naturally-occurring bacteria are not present in sufficient numbers and the proper strains of bacteria are not always available. No amount of enzymes (proteins that break down the substrate for the bacteria to consume) added to the water will change the type of bacteria present. It’s true that the proper nutrients, both micro- and macronutrients are a great benefit to the bacteria supplementing their diet and strengthening them. Combined with the correct enzymes these nutrients shorten or eliminate the lag phase in bacterial buildup (colonizing your system). Choosing a proper Biodigester product is crucial to the success of the system.

SPL24



Polishing Filtration to 10 GPM Continuous

This single polishing loop system is designed to recycle and filter wastewater from an existing in-ground pit or above ground tank and can utilize many types of filter media. The filter media is specifically selected for the application. Consult us for media recommendations.

3/4 Hp Single Polishing Loop
Flow: 10 GPM Constant, 20 GPM Intermittent
Requirements: adequate in-ground pits (sumps) or optional. 110 gal tank

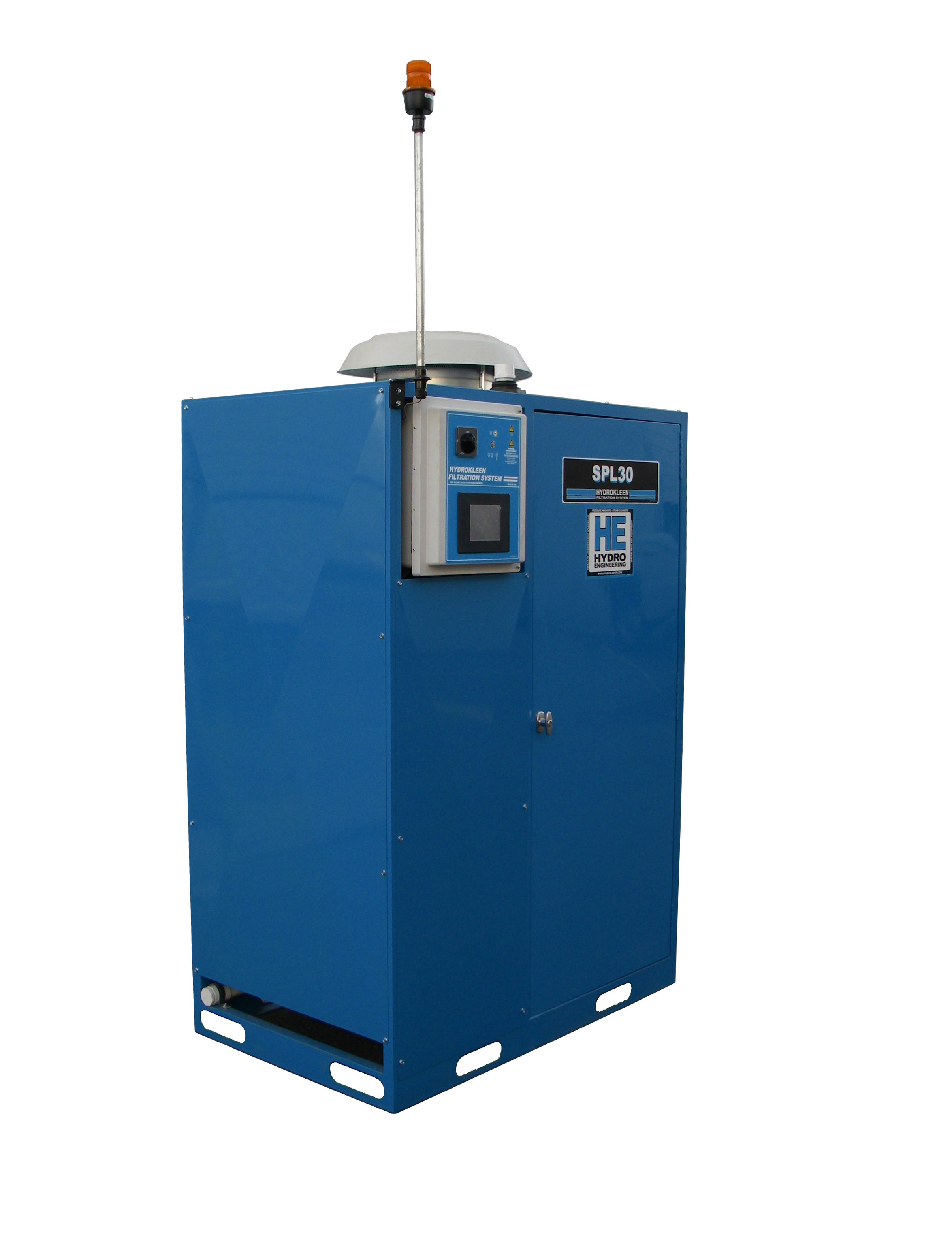

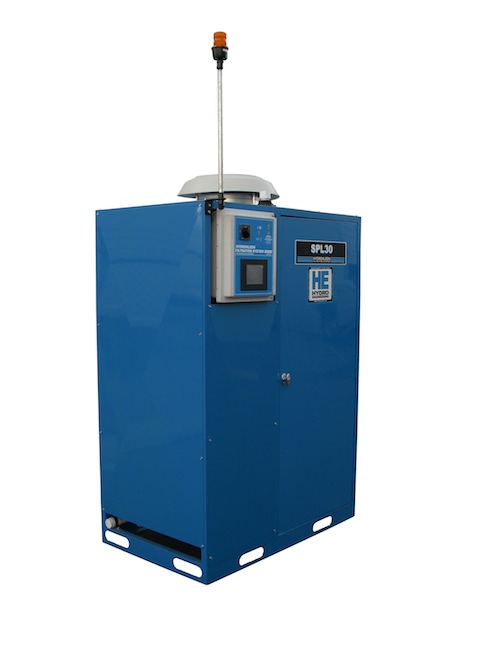

SPL30



Polishing Filtration to 50 GPM Continuous

This high flow, single polishing loop system is designed to recycle and filter wastewater from an existing in-ground pit or above-ground tank and can utilize many types of filter media. With its higher flow rates, multiple wash systems can be supplied with recycled water. The filter media is specifically selected for the application. Consult us for media recommendations.

1.5 Hp Single Polishing Loop
Flow: 50 GPM Constant, 70 GPM Intermittent
Requirements: adequate in-ground pits (sumps) or optional 250 or 500 gallon above-ground tank.




DPL30



Dual Polishing Filtration to 50 GPM Continuous

This high flow, dual polishing loop system is designed to recycle and filter wastewater from an existing in-ground pit or above-ground tank and can utilize many types of filter media. With its higher flow rates and dual filter media system, multiple wash systems can be supplied with recycled water. The filter media is specifically selected for the application. Consult us for media recommendations.

1.5 Hp Dual Polishing Loop
Flow: 50 GPM Constant, 70 GPM Intermittent
Requirements: adequate in-ground pits (sumps) or use two optional 250 or 500 gallon above-ground tanks.




Single And Dual Polishing Loop Specifications



SPL24 Specifications
SPL30 Specifications
DPL30 Specifications
