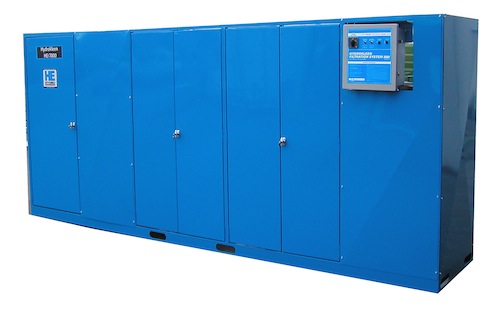

HE/7000, dual stage multi-media system with oil coalescing


Wastewater Treatment Or Recycling Removing; Oil/Grease, Light Hydrocarbons & Heavy Metals, Used In Any Pressure Washing Or Wastewater Processing Application

  • Certified to CE and UL standards for the EU, USA, and Canada
  • Overflow protection
  • Self-cleaning tanks
  • Gravity flow-through design
  • Cone bottom primary solids settling tank
  • 76,896 sq. in. of oil coalescing plates
  • Several different media choices are available in each of the two polishing loops.  Media choices are determined by the waste stream being treated and include specialized materials to remove solids, hydrocarbons, and metals.
  • Oil belt skimmer with oil/water decanter
  • PLC controls daily operation and maintenance functions
  • Optional remote operation monitoring, with data logging and alert messages delivered by e-mail to your computer or phone.
    HE/7000 Specifications

Customer Comments

Hydro Engineering's Water Filtration and Recycling Systems Work
Bill Kleman
Scott Machinery

"We've Been Recycling Over 3 Years!"
Bob Bryant, Maintenance Manager,
G.I. Apparel

Hydrokleen Filtration Works!
Dave Drake, Service Manager
Bobcat Of New Hampshire

How Well My Hydro Engineering Equipment Performs
Cliff Reed
PA Cleaning Systems

Water Filtration

How The HE/7000 Works

The HE/7000 is designed with three complete modules: (1) oil/water separation; (2) a polishing loop for hydrocarbon removal; (3) a polishing loop for metals removal. As dirty water enters the HE/7000, it is slowed down, thus allowing the solids to fall to the bottom of the coalescing tank and the oil/water separation to begin. Gravity causes the oily water to flow through 76,896 square inches of oil coalescing plates. These plates allow the oil to gather together into large droplets where they can float to the surface and be mechanically skimmed from the water. Virtually oil-free water then flows into a multi media-polishing loop, which reduces light and emulsified hydrocarbons to less than 10 ppm. The water then moves to a polishing loop for metals reduction. Dual polishing loops circulate water at 50 GPM, assuring multiple passes through the job-specific media which prepares the water for recycling or direct to sewer discharge. This unit provides a polishing filtration system.
