The
5/3000GHOTT/AWS
Aircraft Washing System |
 |
 |
Designed in
cooperation with AGSE, the 5/3000GHOTT/AWS is the safest,
toughest aircraft washing systems available! |
|
The
AWS is designed with dual hot water washing and chemical
delivery wands allowing up to 3 soldiers to wash simultaneously.
|
 |
 |
Its tandem
axle configuration with 525 gallon water tank, dual
30 gallon chemical tanks, spare storage, and four hose
reels make this a fully self contained unit. |
|
Dual
high pressure hose reels mounted on the curbside allow
easy access to the control panel during start up and
shut down sequences. Gun and wand assemblies are stored
in holsters provided adjacent to the hose reels. |
 |
 |
All moving
parts are conveniently located in a lockable stainless
steel enclosure, out of the weather and safe from tampering.
|
|
Inside
the stainless steel enclosure is the heart of the machine;
its water cooled diesel engine is designed for the temperature
extremes found in the field, belt driven triplex plunger
pump is simple to service and rebuild, maintenance free
gel cell battery and coolant reservoir. |
 |
 |
Duel fuel
tanks feed the engine and burner system. This allows
maintenance personnel to use fuel additives that may
be designed only for use with the diesel engine or the
oil fired burner. |
|
Located
at the rear are a full compliment of useful features;
dual 30 gallon soap tanks, dual hose reels feeding the
chemical application systems, spare parts and cleaning
equipment supplies. |
 |
 |
The AGSE spares
kit includes everything the operator requires to complete
the mission. |
|
The
AWS was designed to meet all mission requirements with
ease of use in the forefront. Its central control panel
includes; engine start/stop, emergency kill switch,
burner temp., soap pre-spray system and chemical selection
controls. Hour meter, charging system and low engine
oil light. |
 |
 |
AGSE approved
aircraft washing instructions placard. This document
shows exactly how to use the 5/3000GHOTT/AWS in accordance
with AGSE washing procedures. |
|
The
Hydroblaster AWS trailer system has a CAD designed and
stress modeled framework of 3, 4, and 6 steel. Its
fully welded structural steel frame has integrated mounting
points for every item the AWS includes. |
 |
 |
Shown here
the AWS features an integrated chemical bucket mounting
kit, hand brake and lifting eyes. |
|

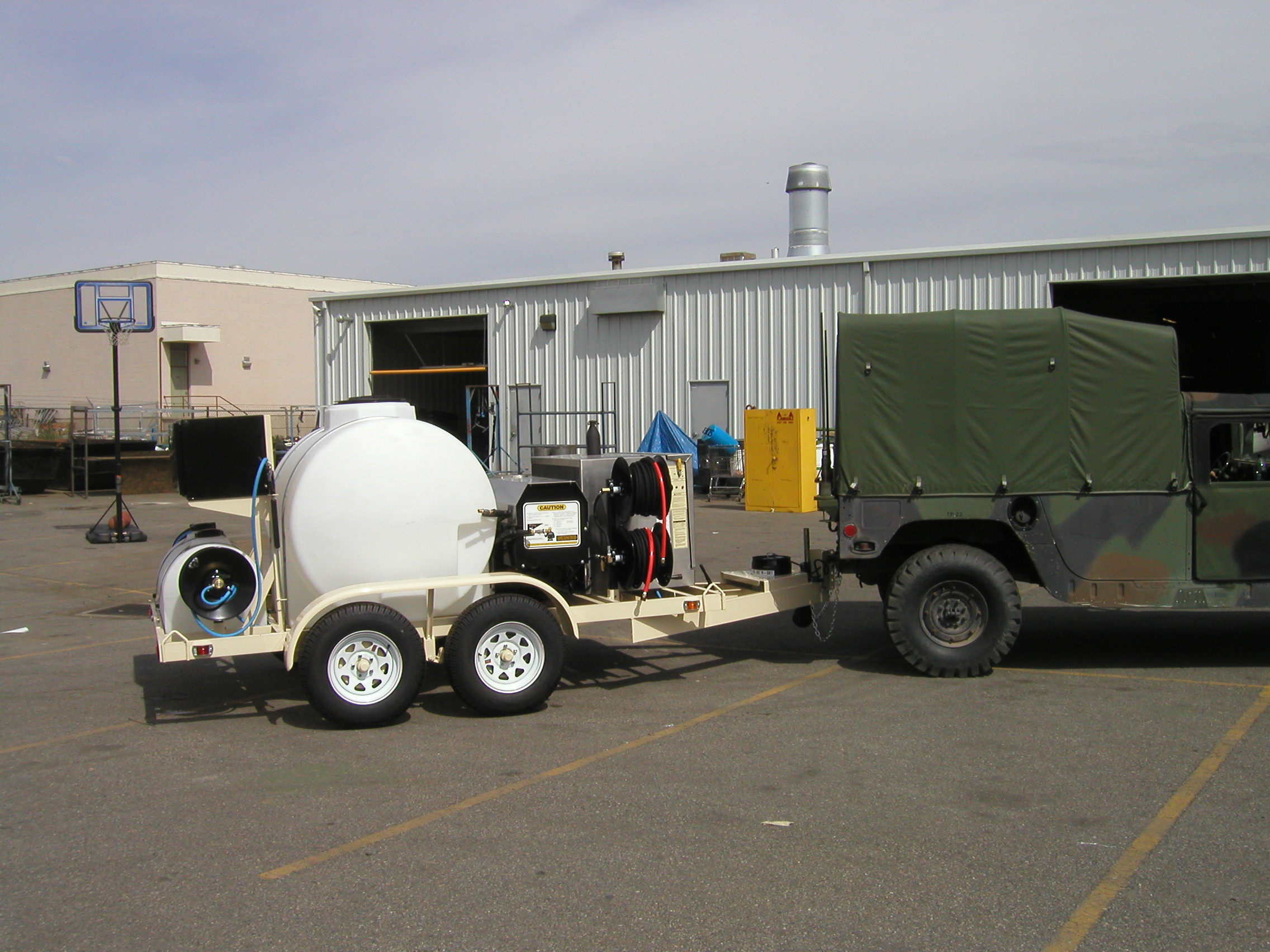

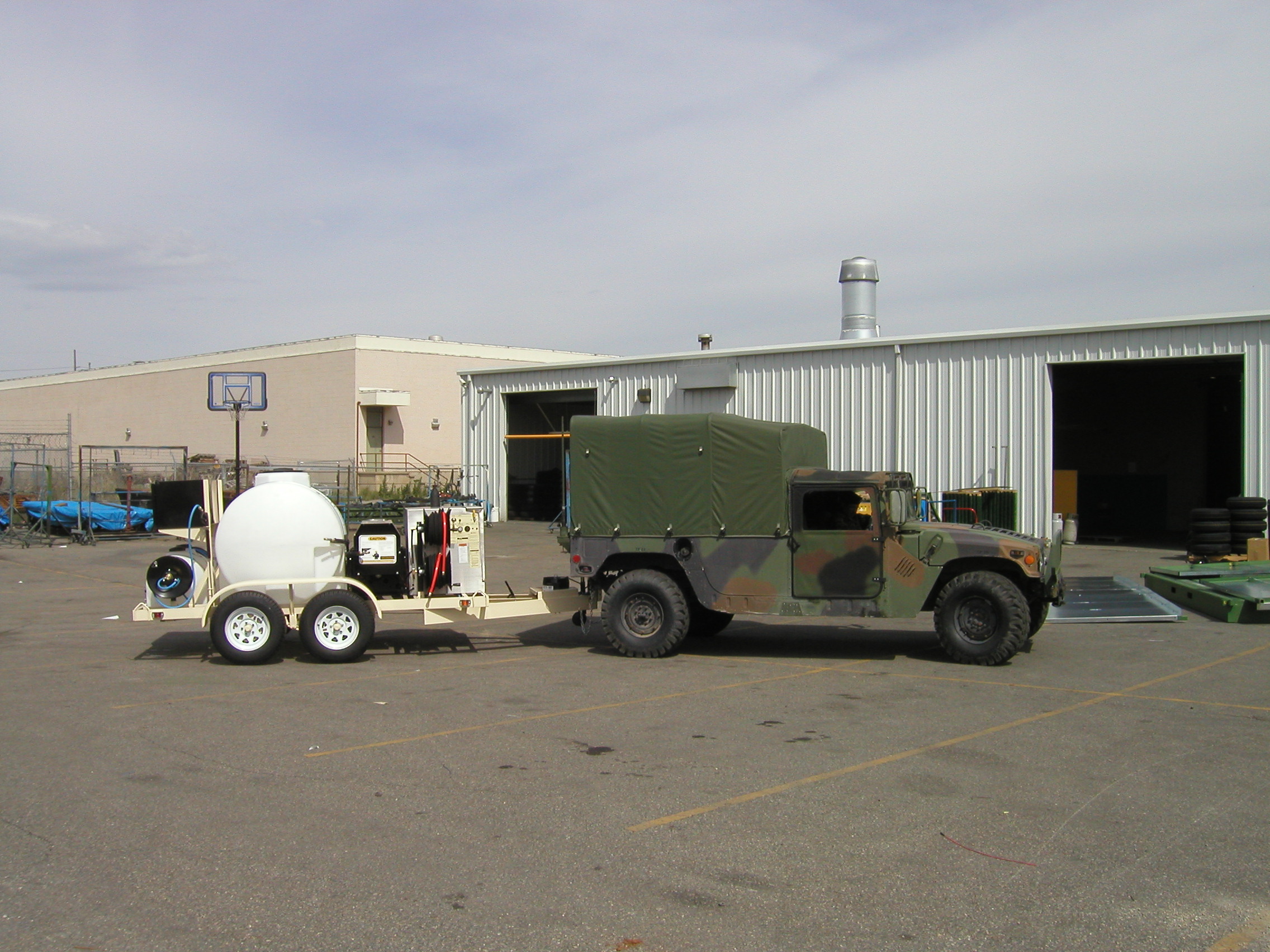

The
Hydroblaster AWS is so well balanced the tongue weight
is only 465 lbs (with or without water). Here the HMMWV
hitch ground height is 29.5, our unique lunette eye
hitch will accommodate height changes from 18 to 31
while the trailer remains level. |
 |
 |

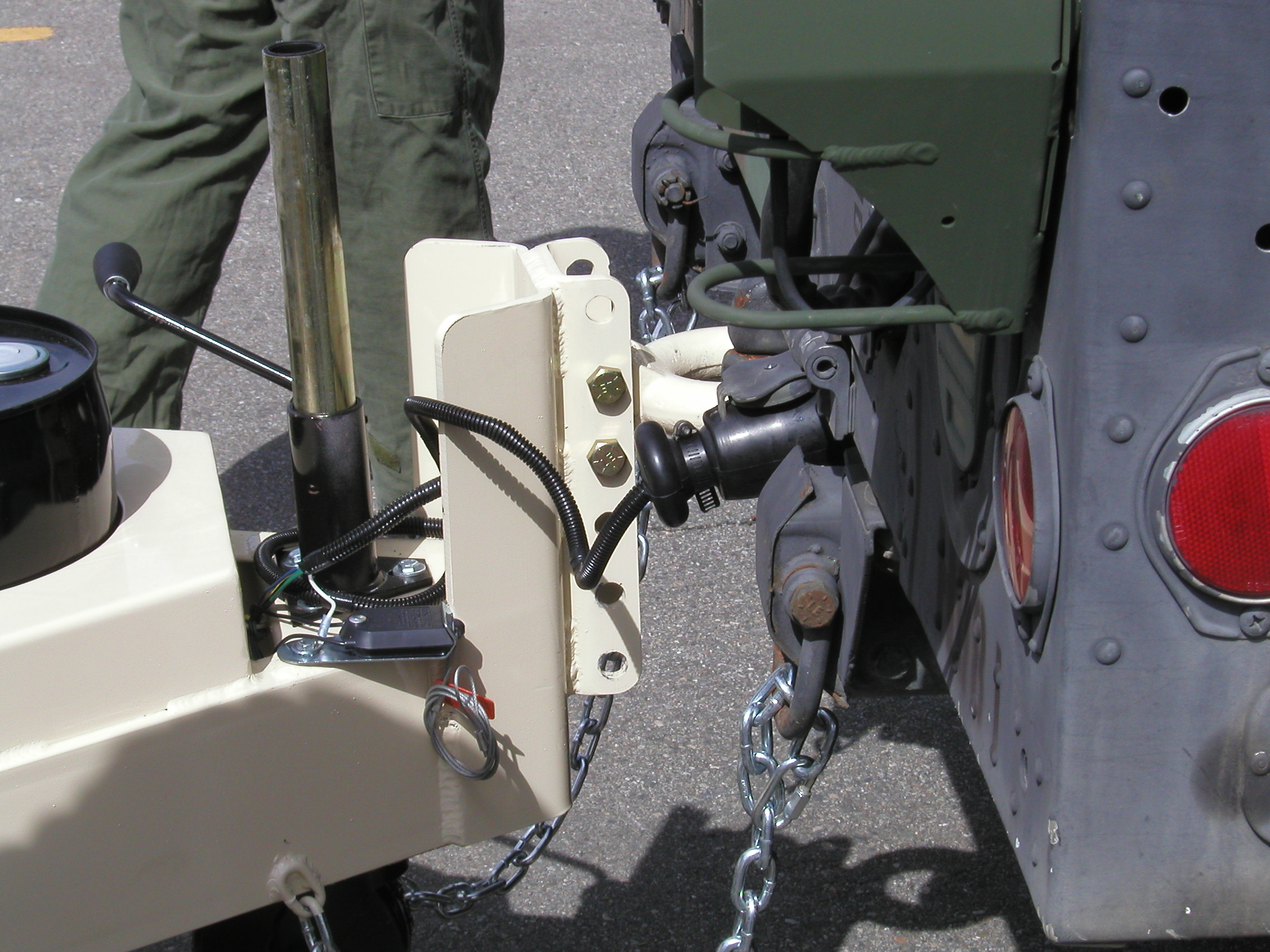

Our quick-lock
lunette eye, multi position hitch, allows the AWS to
be pulled by most vehicle assets. |
|

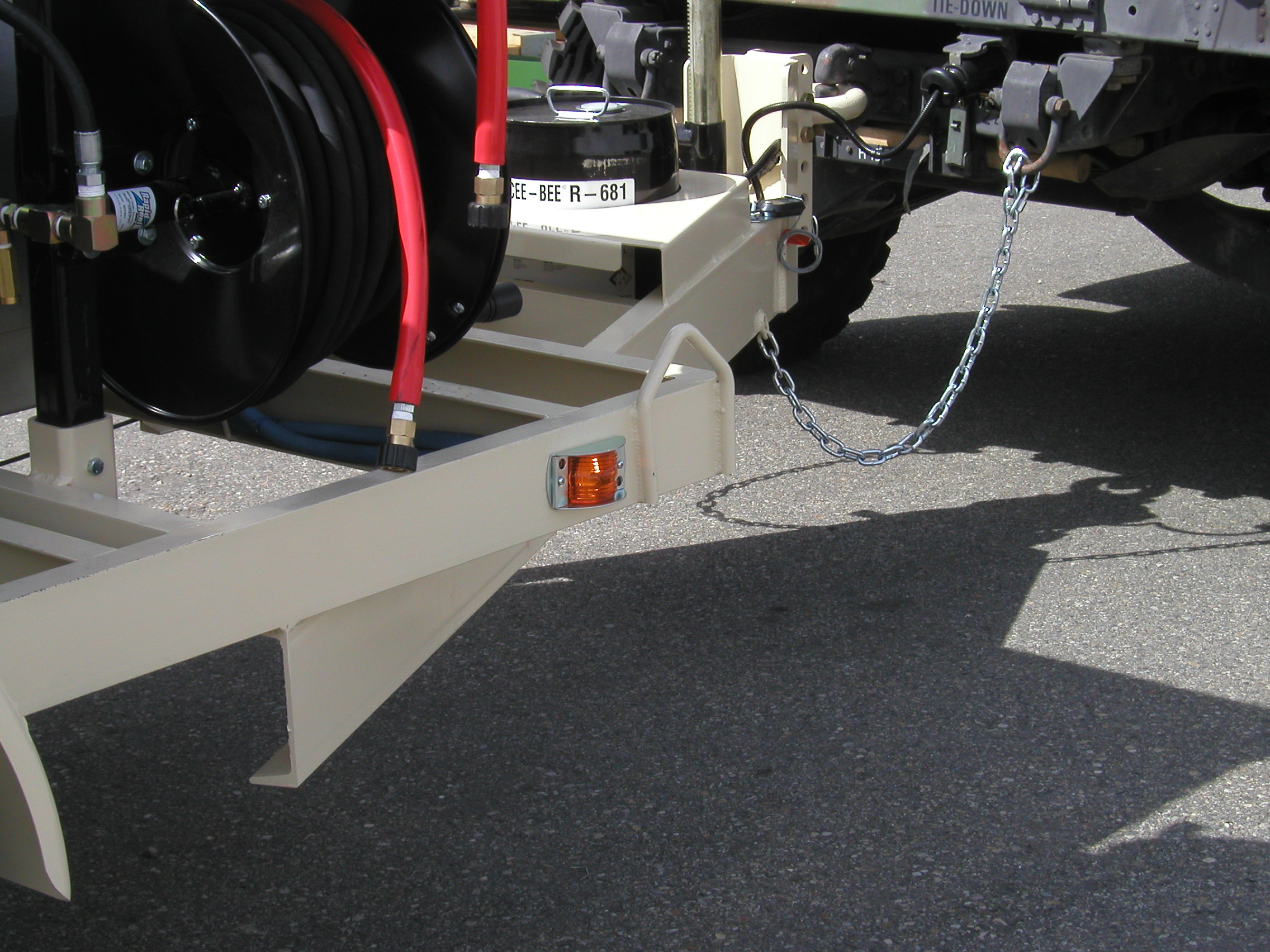

Double
hung A frame supports the hitch assembly and provides
stable towing even at high speed. Safety chains, full
height trailer jack, lifting eyes and D.O.T. lighting
is all included in the AWS |
 |
 |
The AWS is
provided with an emergency safety brake actuator, electric
brakes on both axels and MIL Spec lighting plug. |
|

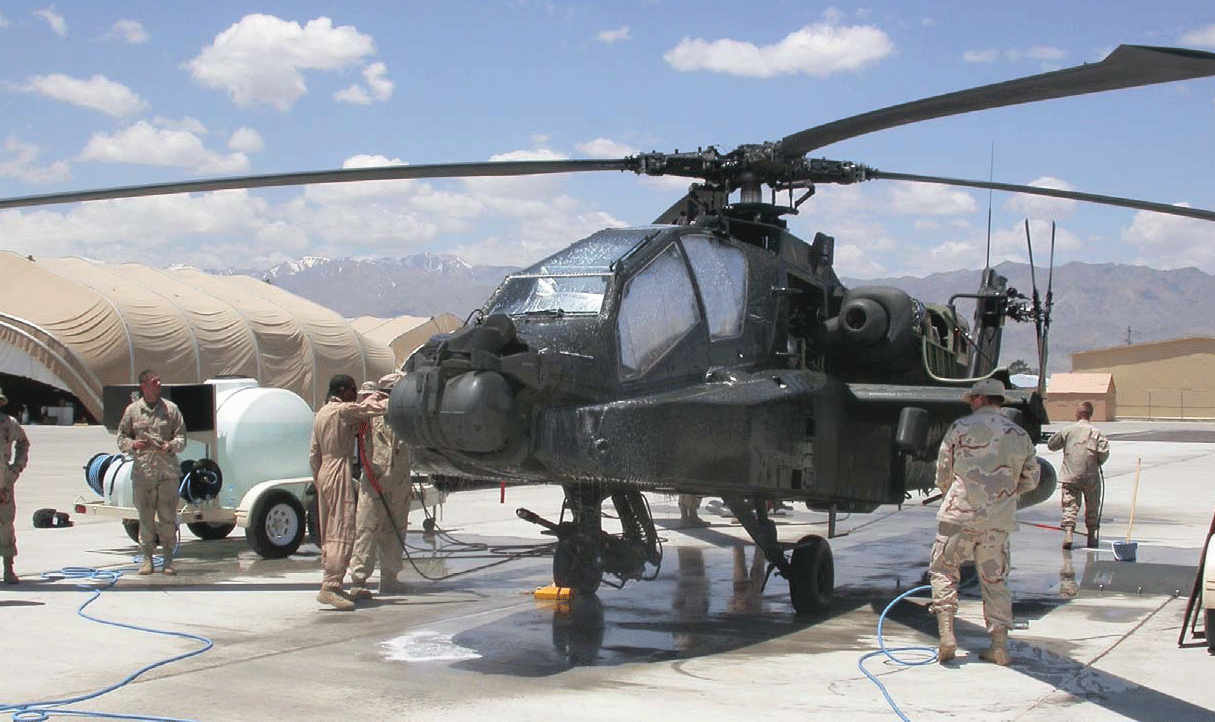

The Hydroblaster 5/3000GHOTT/AWS
is the clear choice of the U.S. Military. Over 300 5/3000GHOTT/
Hydroblasters are serving in the Middle East . |
 |
