HYDROSITE™ INTEGRATED SYSTEM

Hydrosite Integrated Systems are self-contained tactical decontamination systems for Military ground support vehicles, aircraft and other heavy equipment. Hydrosite Integrated Systems include all equipment, components, support subsystems, and controls to perform effective wash/rinse decontamination and provide wash wastewater management. These systems are designed, manufactured and supplied to optimize the equipment decontamination process at base operations or during deployment situations.

Hydrosite Integrated Systems are modular design and all equipment engineered for above-ground placement. Site utility requirements include 208-230 volt, 3-phase power and connection to a water supply used for fill and makeup purposes only. Wastewater management processing of the system is a closed-loop system for recycle operation or can be plumbed for discharge to an approved sewer system. System-treated discharge will meet federal, state or local contaminant limitations.

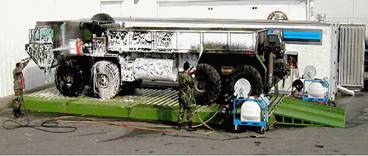

Hydrosite Vehicle Decontamination System Overview

Military and Government Products


Hydrosite Integrated Systems are available in a wide variety of configurations to meet specific requirements. The following summarizes just a few of the system features:

  • ISO/TC-104 Certified Environmentally Controlled Equipment Enclosure
  • Up to four (4) station Hydroblaster™ System with Remote Equipment Module (REM) operation
  • Hydrofoamer™ soap/foam application system at each REM station
  • Hydrokleen™ Solids/Liquid Separation, 20-micron nominal
  • Secondary solids recovery to 1-micron
  • Hydrokleen Dual Polishing Filtration System with Oil Coalescing & Skimming
  • Hydro-Biodigester™ Auto Dosing System
  • Hydropad™ Tactical Wash Pad System, single lane, dual lanes, up to 30-tons/axle, modular
  • Ancillary equipment, components, sub-systems, controls, parts and supplies to facilitate and support manufacturing completion and field operation.
  • Ancillary services to include pre-manufacturing site evaluation, design, engineering, manufacturing, inspection, testing, field service and administration. Field service includes site installation inspection, startup and training for CONUS application. Field service for OCONUS applications is available under separate agreement.





Hydro Engineering, Inc. currently has three (3) systems listed on GSA Advantage and are available for purchase on our GSA Contract #GS10F-8722G. These three systems are summarized as follows:



SYSTEM #1

MODEL #HIS-40M2-HP1-40

HYDROSITE™ INTEGRATED SYSTEM

Military Vehicle Tactical Decontamination System – Is a two (2) station, self-contained, high-pressure hot water closed-loop, recycle wash/rinse system complete with one (1) Hydropad™ single lane, 30-ton/axle, all steel, aboveground wash pad system complete with ramps. All process systems are assembled and mounted in a Hydrosite environmentally-controlled enclosure ready to operate. Hydropad wash pad lane sets up to a completed surface dimension of 14' wide by 40' long, not including ramps (pad dimensions can be changed to meet application).

Total Weight: 32,000 lbs (approximate)



SYSTEM #2

MODEL #HIS-40M4-HP1-40

HYDROSITE™ INTEGRATED SYSTEM

Military Vehicle Tactical Decontamination System – Is a four (4) station, self-contained, high-pressure hot water closed-loop, recycle wash/rinse system complete with one (1) Hydropad™ single lane, 30-ton/axle, all steel, aboveground wash pad system with ramps. All process systems are assembled and mounted in a Hydrosite environmentally-controlled enclosure ready to operate. Hydropad wash pad sets up to a completed surface dimension of 14' wide by 40' long, not including ramps (pad dimensions can be changed to meet application).

Total Weight: 33,000 lbs (approximate)



SYSTEM #3

MODEL #HIS-40M4-HP2-40

HYDROSITE™ INTEGRATED SYSTEM

Military Vehicle Tactical Decontamination System – Is a four (4) station, self-contained, high-pressure hot water closed-loop, recycle wash/rinse system complete with two (2) Hydropad™ single lane, 30-ton/axle, all steel, aboveground wash pad systems complete with ramps. All process systems are assembled and mounted in a Hydrosite environmentally-controlled enclosure ready to operate. Each Hydropad wash pad lane sets up to a completed surface dimension of 14' wide by 40' long, not including ramps (pad dimensions can be changed to meet application).

Total Weight: 49,000 lbs (approximate)
